Tractor-Mounted Wheel Trencher

Wizz Wheel 55

High-speed sand-slitting wheel trencher for sports turf

Available to purchase through TrenchWorks in New Zealand

Best For

Suited to These Applications

Sports turf drainage
Golf course drainage
Primary and secondary drainage
Sand slitting

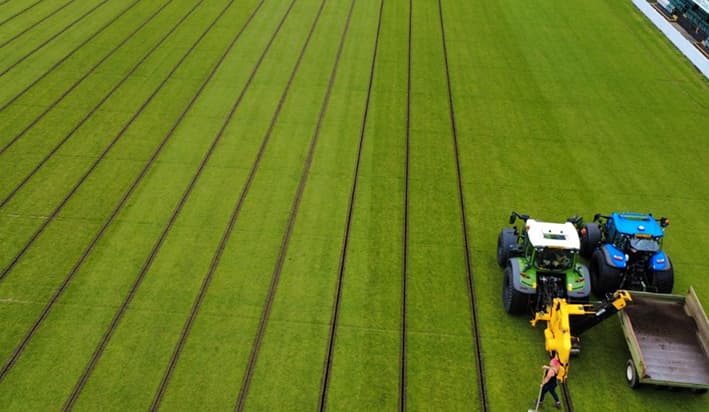

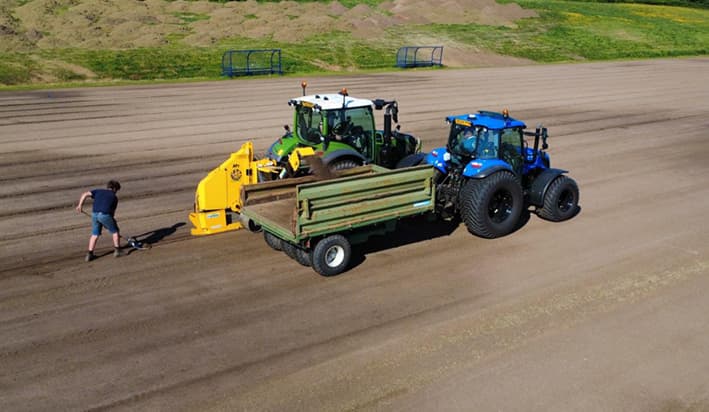

The Wizz Wheel 55 is a high-speed sand-slitting wheel trencher built for tractors of 75+ hp, delivering clean, narrow drainage trenches for golf courses and sports fields at up to 750 metres/hour. Interchangeable soil, carbide or bullet-tooth wheels handle everything from soft turf to rocky, basalt-hard ground, with a full soil clean-up conveyor for one-pass operation.

Why Consider It

Up to 750 metres/hour in favourable ground conditions
Soil, carbide or bullet-tooth wheel options — handles basalt-hard ground

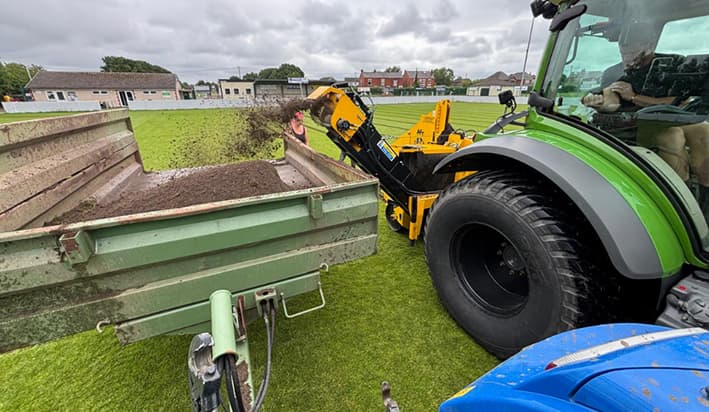

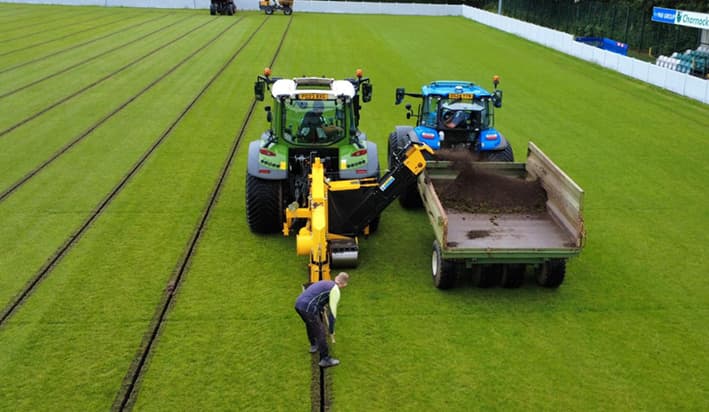

Complete soil clean-up conveyor for one-pass operation
Optional laser grading and pipe/cable chute accessories

Works With

75+ hp, CAT2 linkage

Trenching Depth

0.55m

Trenching Width

50–150mm

Specifications

Tractor Requirement: 75+ hp, CAT2 linkage
Maximum Digging Depth: 0.55m
Trench Width: 50–150mm
PTO: 6 spline, 540 RPM
Output: 150–750 metres/hour (ground dependent)
Weight: Approx. 1,100kg

Is This the Right Machine for Me?

The Wizz Wheel 55 is built for 75+ hp, cat2 linkage, trenching to 0.55m at widths of 50–150mm. If your project sits within that range it's a strong candidate — but ground conditions, site access and the exact outcome you need all matter too. Use the Find My Trencherquiz (on the right on desktop, or in the menu on mobile) for a starting recommendation, then talk to TrenchWorks to confirm it's right for your site before you buy. See the Trenchers NZ buying guide for how this machine compares across the full range.
